What is the general process of mold production?

1. Requirements analysis and design: Communicate with customers to understand their product needs and functional requirements. Then, the mold design is carried out based on these requirements, including determining the structure, shape, size, etc. of the mold. During the design process, multiple modifications and optimizations may be required to ensure that customer requirements are met.

2. Mold manufacturing: According to the design drawings, start manufacturing the mold. This stage includes the following steps:

a. Select appropriate mold materials, such as steel, aluminum, etc.

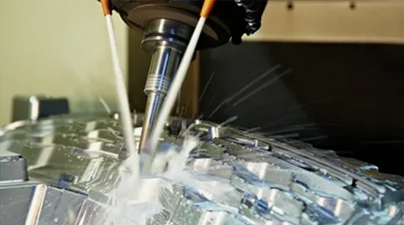

b. Use CNC machining, EDM, wire cutting, and other methods to process mold parts.

c. Perform heat treatment, surface treatment, and other processes on the processed mold parts to improve the durability and performance of the mold.

d. Assemble the processed parts into a complete mold.

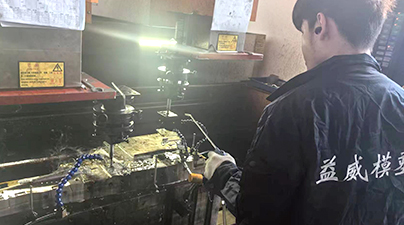

3. Mold trial and debugging: After the mold manufacturing is completed, a mold trial is required to check the performance of the mold and product quality. During the mold trial process, some problems may be discovered and the mold needs to be adjusted and optimized. This process may require multiple iterations until the mold's performance and product quality meet customer requirements.

4. Mass production: After mold debugging is completed, mass production can begin. At this stage, the production process needs to be monitored and quality controlled to ensure stable product quality.

5. Later maintenance and support: The mold may require maintenance and repair during use. Mold manufacturers should provide corresponding technical support and services to help customers solve problems encountered during the production process.

The entire mold production process requires close cooperation between all links to ensure that the quality and performance of the mold meet customer needs. At the same time, continuous optimization of the production process and improvement of technical levels will help improve the efficiency of mold manufacturing and reduce costs.

Precision Plastic Injection Molding Molds: The Material Matters

In the intricate world of manufacturing, precision is key. When it comes to plastic injection molding, the material used for the molds can significantly impact the quality, durability, and performance of the final product.

The Significance of Material Selection

The choice of material for a precision plastic injection molding mold is not a decision to be taken lightly. It directly influences the mold's lifespan, the quality of the molded parts, and the overall efficiency of the production process. High-quality materials can withstand the rigors of the molding process, ensuring consistent and accurate parts production over time.

Common Materials for Precision Molds

Several materials are commonly used in the construction of precision plastic injection molding molds, each with its own set of advantages and ideal applications.

1. Steel

Steel is perhaps the widely used material for molds due to its strength, durability, and heat resistance. It is ideal for high-volume production runs where the mold will be subjected to repeated use. Steel molds can be designed with complex geometries and intricate details, making them suitable for a wide range of applications.

Types of Steel Used:

- P20: A popular choice for general-purpose molds, offering good polishability and machinability.

- H13: Known for its good heat resistance and toughness, making it ideal for molds that require high-temperature processing.

2. Aluminum

Aluminum molds are valued for their lightweight and low thermal conductivity properties. They are often used for prototype development and short production runs due to their quick manufacturing time and lower cost compared to steel molds.

Benefits of Aluminum Molds:

- Faster heat-up and cool-down cycles, which can speed up the production process.

- Lower cost and quicker turnaround for prototype molds.

3. Brass

Brass molds are known for their good thermal conductivity, making them suitable for applications where heat dissipation is critical. They are often used for molds that require precise temperature control.

Applications of Brass Molds:

- Small, intricate parts where heat transfer is essential for the molding process.

- Specialized applications where the mold must maintain a consistent temperature.

4. Beryllium Copper

Beryllium copper is a high-strength alloy that offers heat dissipation and non-magnetic properties. It is often used for molds that require high precision and resistance to deformation under stress.

Advantages of Beryllium Copper Molds:

- High precision and dimensional stability.

- Good wear resistance and corrosion resistance.

5. Plastic

In some cases, molds can be made from plastic materials, particularly for low-volume production or when the part being molded is also made from plastic. This can reduce costs and time.

Uses of Plastic Molds:

- Low-volume production or prototyping.

- Molds for soft materials or flexible parts.
